Vehicle Access Control
-
Under Vehicle Carriage
Surveillance System
TS-UVscan
TS-UVscan produces crisp pictures to monitor under-vehicle carriage. Installed at seaports, airports, factories, nuclear power plants, and other high-security places, it dramatically enhances security in the facilities. Utilizing a high-speed line scan camera coupled with a bright double-bar projection illumination system, it provides more precise, fast, and effective monitoring. It effectively scans cars or trucks moving up to 60 km/h, it can even scan heavy container trucks. Moreover, its automatic optic-path cleaning system enables it to operate and produce a clear image even in heavy rain or sand-storm. In addition, it dramatically reduces the system maintenance efforts.

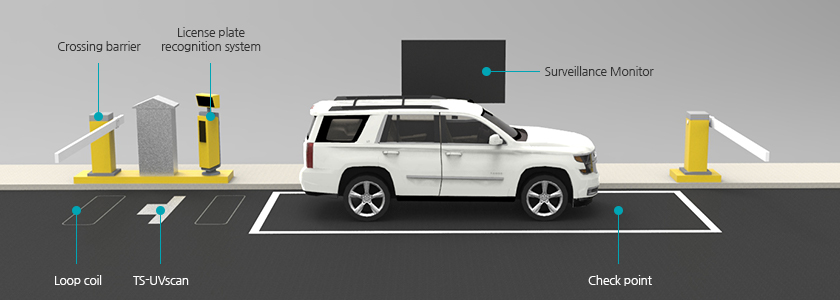

System Diagram
Specifications
| Sensor type | Color Linear CCD scan camera |
|---|---|
| Dimension | 1800 x 530 x 300 mm |
| Recognition and display speed | less than 1 second |
| Sensor resolution/Zoom rate | 4096 pixels, 16x zoom |
| IP rating | IP68 |
| Power | 24V, 8A |
| Recognition rate | 100% |
| Illumination | 120W double bar projection |
| Maximum vehicle weight | 60 ton |
| Installation type | Embedded |
| Operation temperature | -20~60℃ |
| Maximum vehicle speed | 60 Km/h, 40 Mile/h |
- X-Ray(VX-Ray)
Features
- -Vehicle inspection with very low radiation (160kV). No harmful to drivers.
- -Excellent for detecting weapons, both explosive or smuggler
- -Drivers do not need to get out of vehicle. Scans while moving up to at 20km/hr.
- -Passive Filter Technology used (Appropriate for light vehicles)
- Parking Management System
LPR (License Plate Recognition)
The LPR system reduces the traffic at the entrance and exit by allowing the vehicles registered in the system to pass through without stopping as it automatically recognizes the license plates. Non-registered vehicles are also managed easily, without the need of issuing parking tickets or passes. In addition, Techsphere also provides an enhanced solution for vehicle security access control by providing integrated solution with a UVIS(Under Vehicle Inspection System) and/or X-Ray inspection system.
- U-Parking Guidance System
The Parking Guidance System leads a driver to an available parking lot in real time using a sensor installed on a surface of each parking lot, which enables quick and easy parking. The system also allows administrators to monitor statistics and parking lot situations live. The system offers two types of sensors, geomagnetic and ultrasonic, the proper sensor type for a customer will depend on their specific application requirements.
